EM01+ Motor Control

EM01+

200-240V Single Phase AC Input, 14.0Amp   3.2 kVA

0-240V Three Phase AC Output, 6.1Amp

Suitable for 3ph AC motors to 1.5kW or 6.1Amp at 230Vac rated.

Ingress Protection 5 solids, and 5 liquids.  Protection from ingress of dust, Protection against water projected by a nozzle from any direction.

12Vdc output for accessories

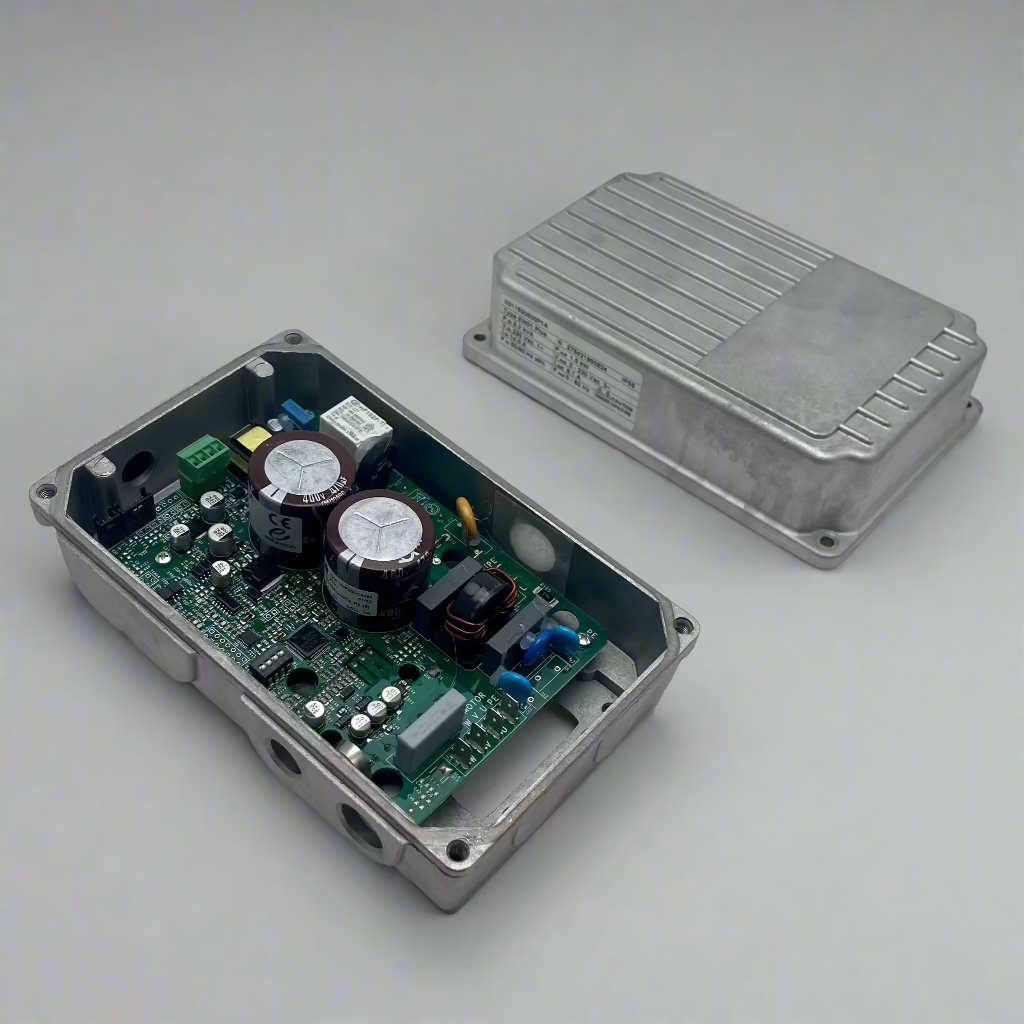

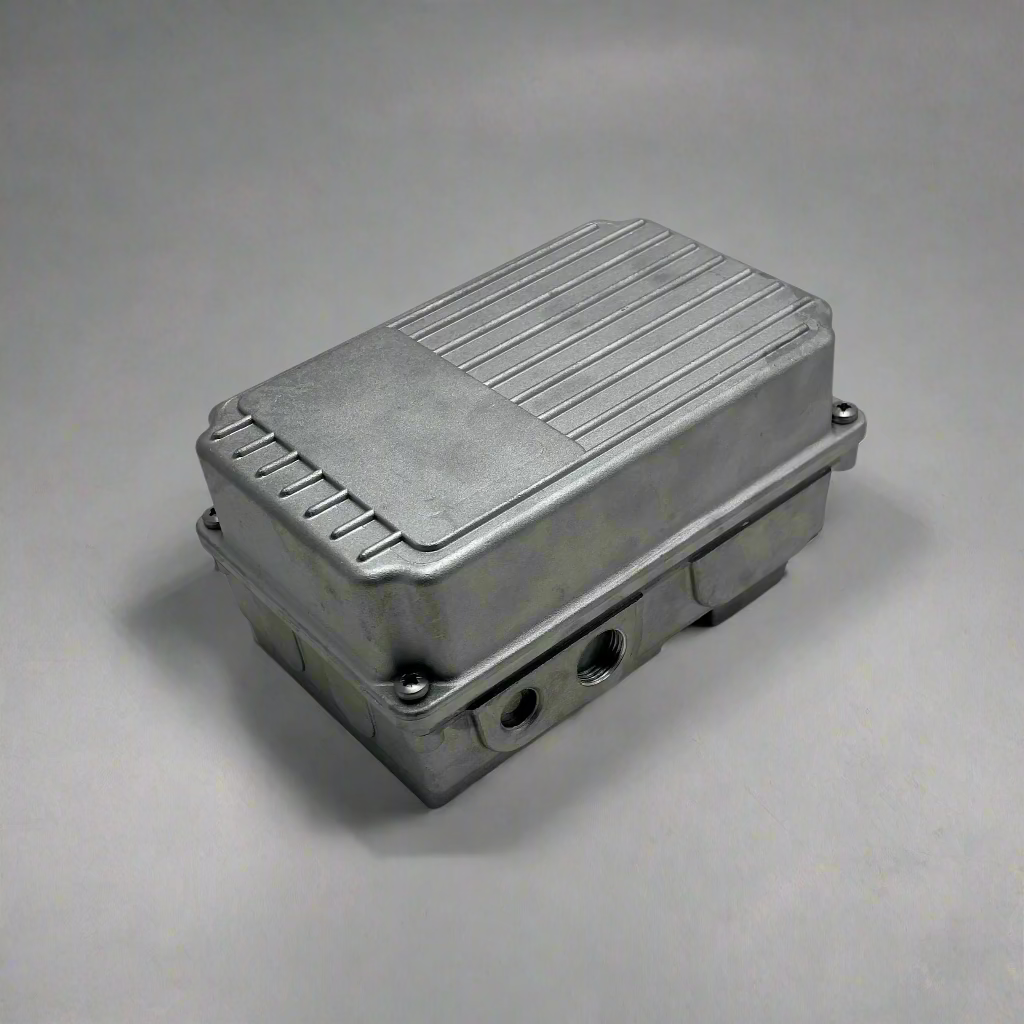

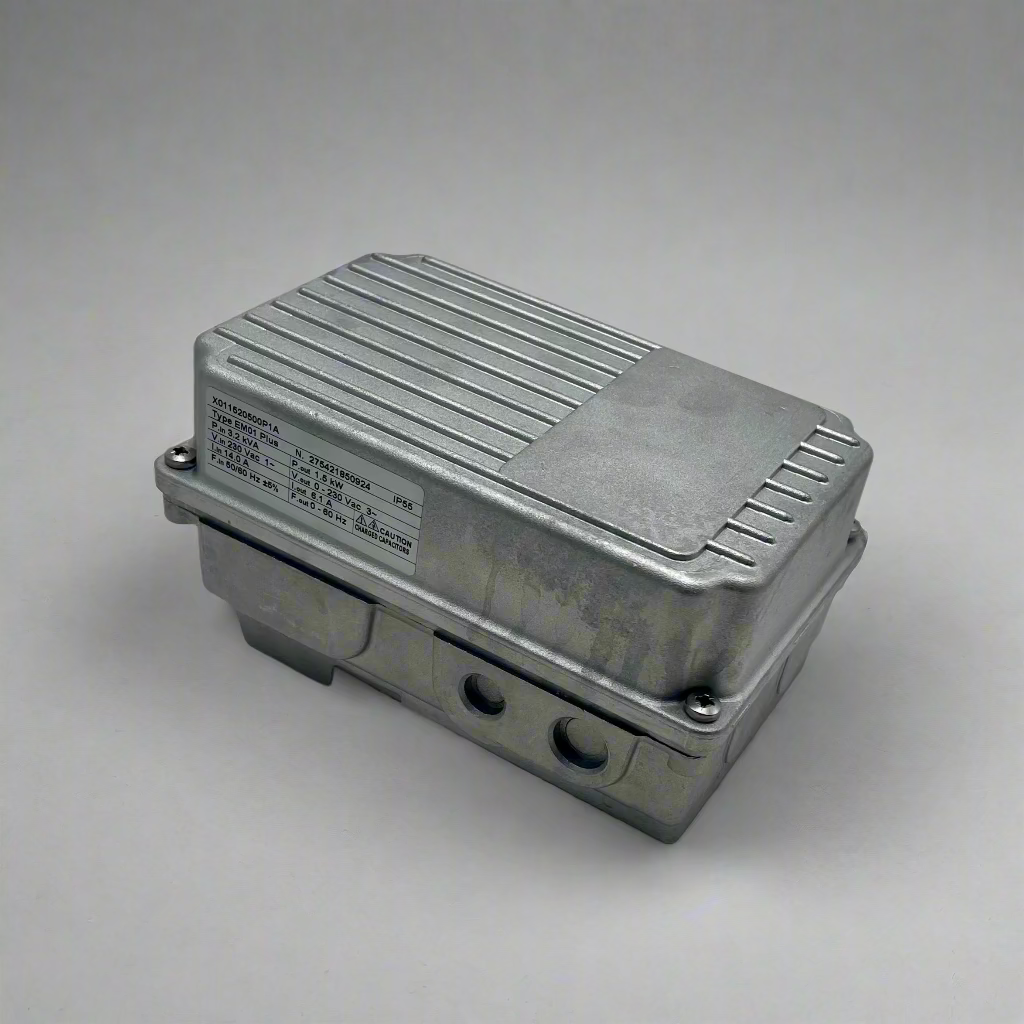

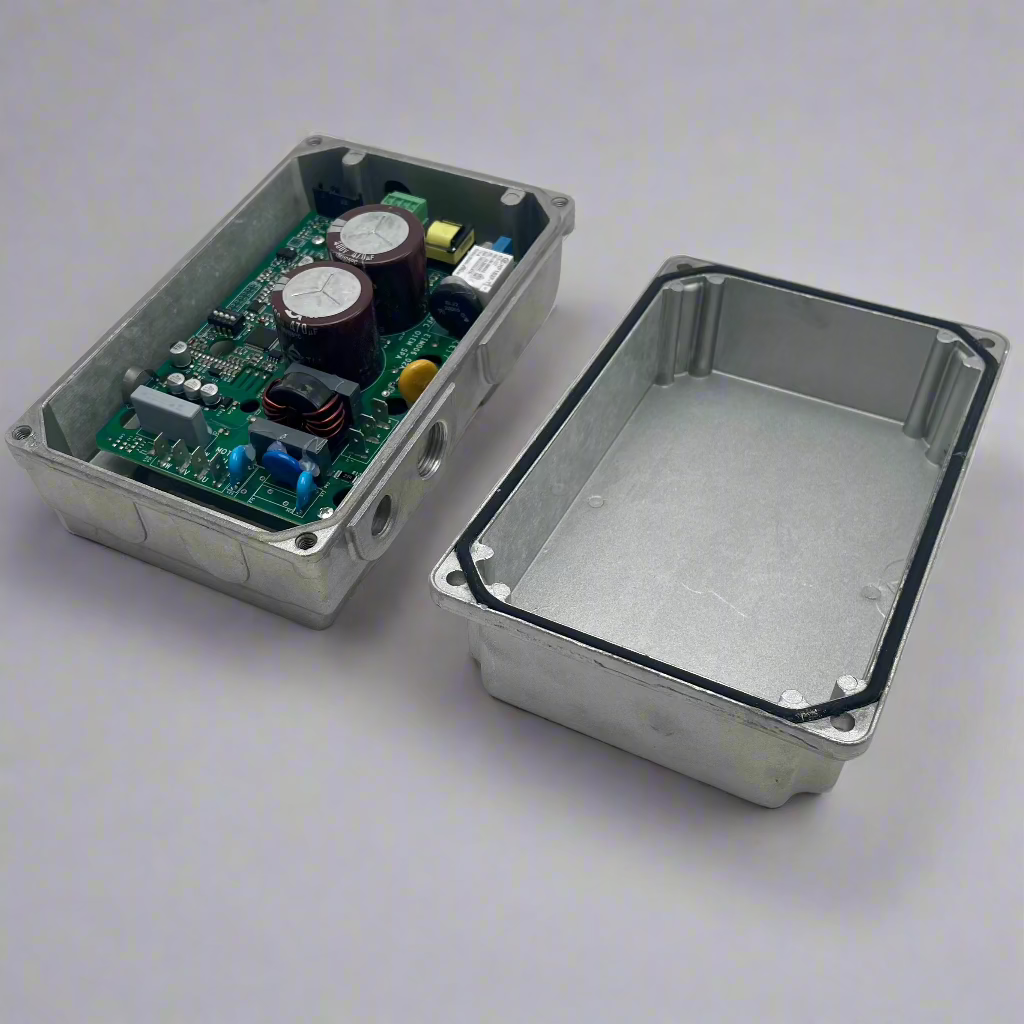

Die-cast Aluminum housing

1/2" NPT drilled & tapped input for Power Supply feed.

M12 drilled & tapped input for control wiring feed.

Programming Manual

HMI Human Machine Interface for programming, diagnostics sold seperately.

Pre-programmed to accelerate from 0 to 60Hz output in 1.5 seconds, and 60 to 0Hz output in 1.5 Seconds.  Preset inputs for Run-Forward and Run-Reverse operation through dry contact terminal strip inputs.

Supercedes TVTDrive1.

100% Made in Italy
